FSL Muse Core Desktop CO2 Laser Cutting and Engraving Machine

$2,999.00
SKU:
MUSECORE
Discover Muse Core:
See Product Overview Section Below

Product Overview

With a removable floor, industry leading RetinaEngrave software, and sturdy metal construction, the Muse Core laser cutting and engraving machine will allow you to take your creativity to the next level.


  • BROWSER BASED SOFTWARE - Windows, Mac and Linux compatible.
  • REMOVABLE FLOOR - enables users to engrave objects larger than the machine itself.
  • ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved.
  • 7" LCD TOUCH SCREEN - allows users to control major functions right from the machine.
  • TECHNICAL SUPPORT via phone and email.
  • 1 YEAR WARRANTY
Tech Specs
Materials
Software
What's Included
Working Area
  • Engraving Area: 20" x 12" (508mm x 305mm)
  • Z-Height: 2.5"
Weight & Dimensions
  • Machine Dimensions: Width: 32.3" x Depth: 20.3" x Height: 8.5" (820mm x 515mm x 215mm)
  • Weight: 54 lbs (24.5 kg)
Laser
  • Laser Classification: Class 3
  • Laser Type: Sealed CO2 Laser Tube
  • Laser Power: 40W
  • Focus Lens Included: 2"
  • Integrated Red Guiding Laser and Beam Combiner
  • Resolution: Up to 1000 dpi
Power
  • Power Supply: ​AC 110V native
  • Gross Power: < 1000W
System
  • Operation Modes: ​Precision Raster, Vector or Combined Modes
  • Motion Control: High-speed, High-precision stepper motors
  • Operating Temperature: 0C - 45C
Material Cuts Engraves
Acrylic
Coated Metals ×
Fabric
Glass ×
Leather
Paper
Rubber
Stone ×
Wood

Software
  • RetinaEngrave v3.0
Compatibility
  • PC, Mac & Linux
Browser Compatibility
  • Google Chrome (recommended), Safari, Firefox, Edge
File Import Options
  • JPG, PNG, BMP, TIFF, SVG, DXF, DWG
Minimum Screen Resolution
  • 1024 x 768 Pixels
Wireless Compatibility
  • 802.11n



  • Honeycomb Table

NOT INCLUDED:  Air Compressor, Water Pump, and Exhaust fan

Inspire. Design. Create.

Muse is the best desktop laser on the market and keeps getting better with LCD touchscreen functions, the powerful, yet easy-to-use, self-hosted browser based RetinaEngrave v3.0 laser control and design software, optional 3D camera features and autofocus (Muse 3D only). From creating original art to starting your own small business, Muse offers the best, most innovative technology in the desktop laser market.

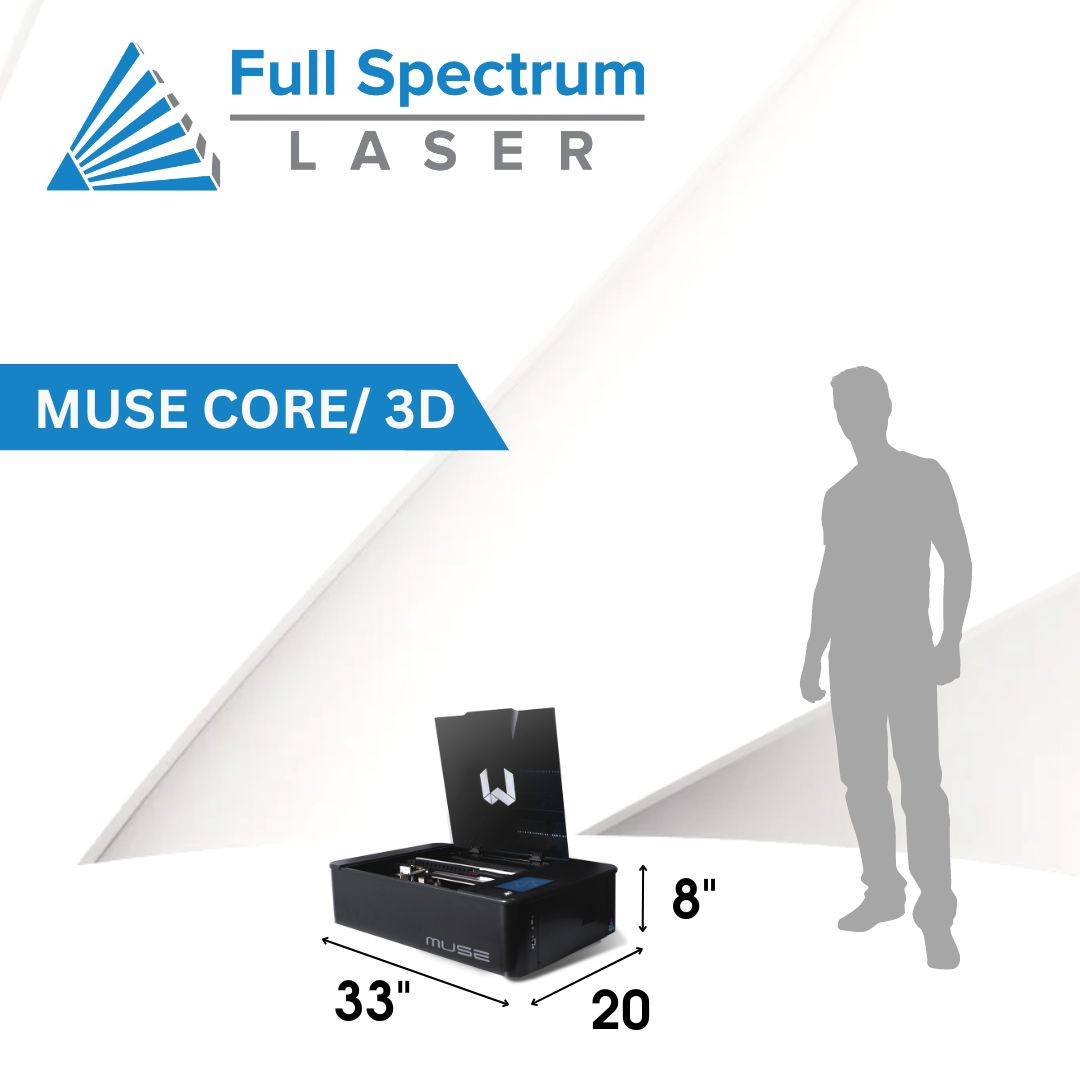

Muse: Desktop Laser System

Muse: Desktop Laser System

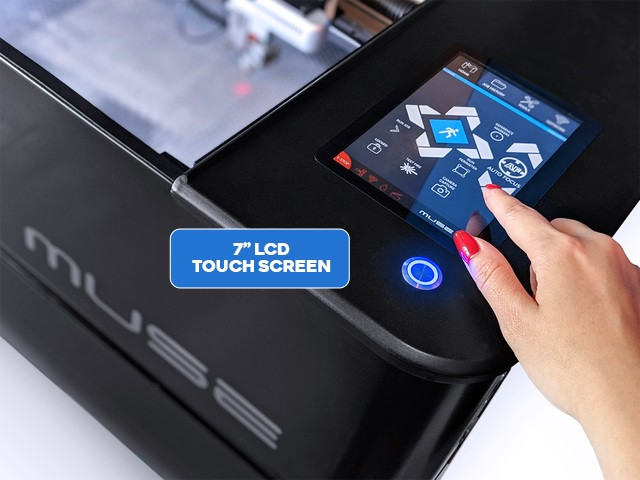

Muse LCD Touchscreen

Key Features

  • Patented Removable floor to engrave on material larger than the internal work area
  • RetinaEngrave v3.0 self-hosted browser-based laser control and design software
  • Intel RealSense™ 3D Camera option 3D scans every pixel for precision XY and focus position (Muse 3D only)
  • Motorized Real-time Autofocus (Muse 3D only)
  • Sleek onboard LCD touchscreen control
  • Cuts up to 1/4 inch material
  • Engraves up to 1000 dpi resolution
  • Optional accessories like the rotary and riser engrave on rounded or larger objects

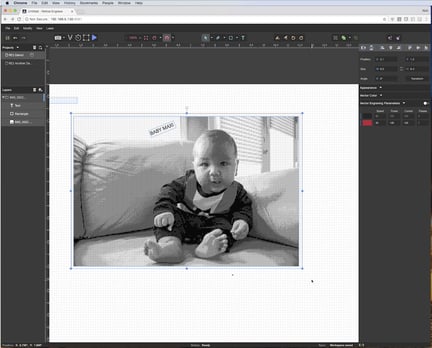

RetinaEngrave v3.0

The Best Laser
Control Software
on the Market!

The powerful, easy-to-use RetinaEngrave v3.0 software lives right on your laser and is accessed using your favorite web browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.

Welcome to the future of laser control & design software!

The Best Laser Control Software on the Market!

Muse Desktop Laser at a glance

Muse at a glance
Standard Laser Tube: 40W CO2
Laser Tube Upgrades: 45W CO2
X-Y Working Area: 20" x 12"
Working Z-Height: 2.5"
Removable Floor: Yes
Rotary Available: Yes
Power Requirements: 120V AC

Rotary Accessory

The Perfect Accessories

Upgrade your cooling system for peak performance of the laser.

Engrave curved objects with a rotary attachment. Work with tumblers, glassware and more.

Increase your laser tube power to accelerate cutting speed and marking ability.

...plus fume extractors, specialty focus lenses and more!




Cut. Mark. Engrave.

Cutting Technology

Muse is the laser cutter micro-manufacturers and creative makers have been waiting for, and you can have it today. From creating original art to replicating pieces for rapid construction, Muse offers the best innovative technology on the market.
halloween circular wood cuts

Marking Technology

Mark material using quick pulses of the laser to create sharp images from pictures or original art.

3D Engraving Technology

Muse takes engraving to a whole new level, creating pieces of amazing craftsmanship with simulating 3D effects.

halloween circular wood cuts

















Cutting Technology

Muse is the laser cutter micro-manufacturers and creative makers have been waiting for, and you can have it today. From creating original art to replicating pieces for rapid construction, Muse offers the best innovative technology on the market.













Marking Technology

Mark material using quick pulses of the laser to create sharp images from pictures or original art.















3D Engraving Technology

Muse takes engraving to a whole new level, creating pieces of amazing craftsmanship with simulating 3D effects.


Applications

Wood

Easy to obtain, wood perfectly demonstrates the simple beauty and versatility of what a laser cutter can do.

Acrylic

Open your design possibilities with all the colors of the rainbow using acrylic in your projects.

Fabric

Cut patterns in a flash to create costumes, plush toys, special banners and even clothing.

Leather

Customize leather goods and clothing with personalized engravings. Create unique belts, holsters, backpacks and more.

Paper

Take your artistic skills to a new level, cutting paper with speed and precision to create delicate designs. Best in industry vector control algorithms cuts or scores paper with no burn marks.

Cardboard

Never underestimate the value of cardboard to create prototype designs and low-cost products.

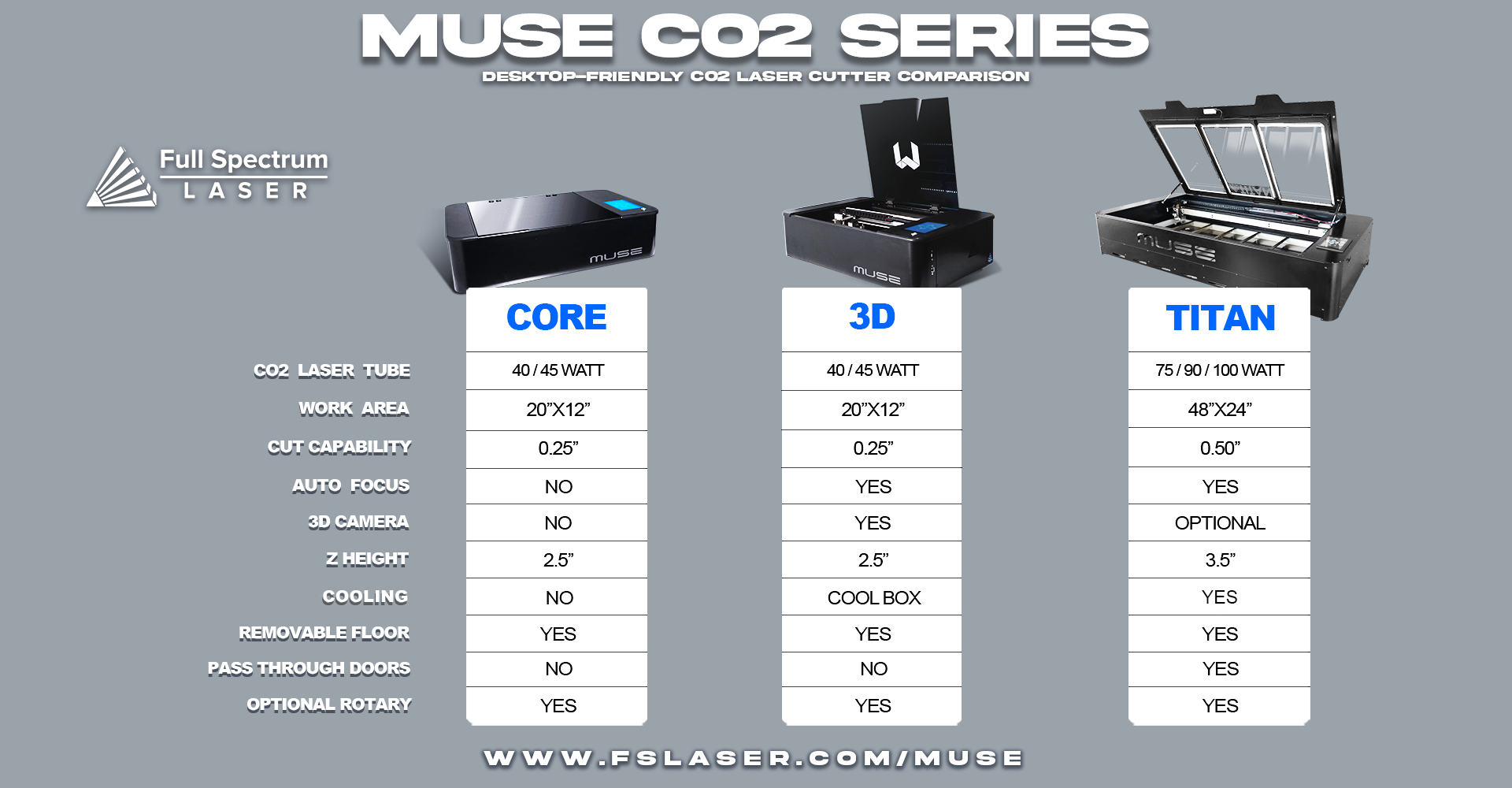

Three Muse CO2 Models to Meet your Needs




Downloads

Please visit our Resource Page for manuals and quickstart guides.
